INTRODUCTION
Medical Electronics

Electromagnetic Compatibility (EMC), as we know, is the ability of equipment and systems to function as designed in their intended operational environment without adversely disturbing or being affected by other equipment or systems. Electromagnetic Compatibility (EMC) has become a topic of serious concern for manufacturers and users of electronic products in the Global Market. Design of an electronic equipment to comply with National/International EMC Standards calls for controlling the emissions from equipment and improving its immunity to external EMI. Undesired emissions may originate from equipment at the component, PCB and enclosure levels. Keeping in mind the EMC testing needs of the industry in the western region of the country, SAMEER took initiative to set up EMI/EMC Test Facilities at their Navi Mumbai Campus.

EMC centre, a part of EMI/EMC Division, SAMEER Mumbai, is located at Navi Mumbai campus, approx. 30 kms away from head office at Powai. The centre was established in the year 2005 for catering to the EMC testing needs of the industry. The division comprises of experienced team of scientists and engineers working in the area of EMI/EMC having vast experience on Space and Defense systems requiring EM compliance. Challenges of suggesting cost effective solutions for meeting EM standard for its compliance are also taken up by the division by way of providing consultancy services. The team also provides testing services for large installations and rolling equipment like suburban (Mono / Metro) and mainline trains.

The Division follows Quality Management System and it is accredited by National Accreditation Board for Standardization and Calibration Laboratories (NABL) as per ISO/IEC 17025:2017. This helps laboratory in keeping abreast with the latest developments in technology and standards. It in-turn assists us in rendering quality services to the manufacturers to meet regulatory requirements for product reliability to their satisfaction.

The division provides the following test and calibration services

EMI/EMC tests
  • Accredited EMI/EMC measurement services at permanent location (in-house) as well as installation sites for compliance to EMC standards (as per Civilian and Military standards).
  • Design consultancy services for compliance to EMI/EMC standards
  • RF noise measurement (survey), RF mapping of large structures, Radiated emission measurements for large installations
  • Measurement of Shielding Effectiveness (S.E.) required for validation of shielded enclosures

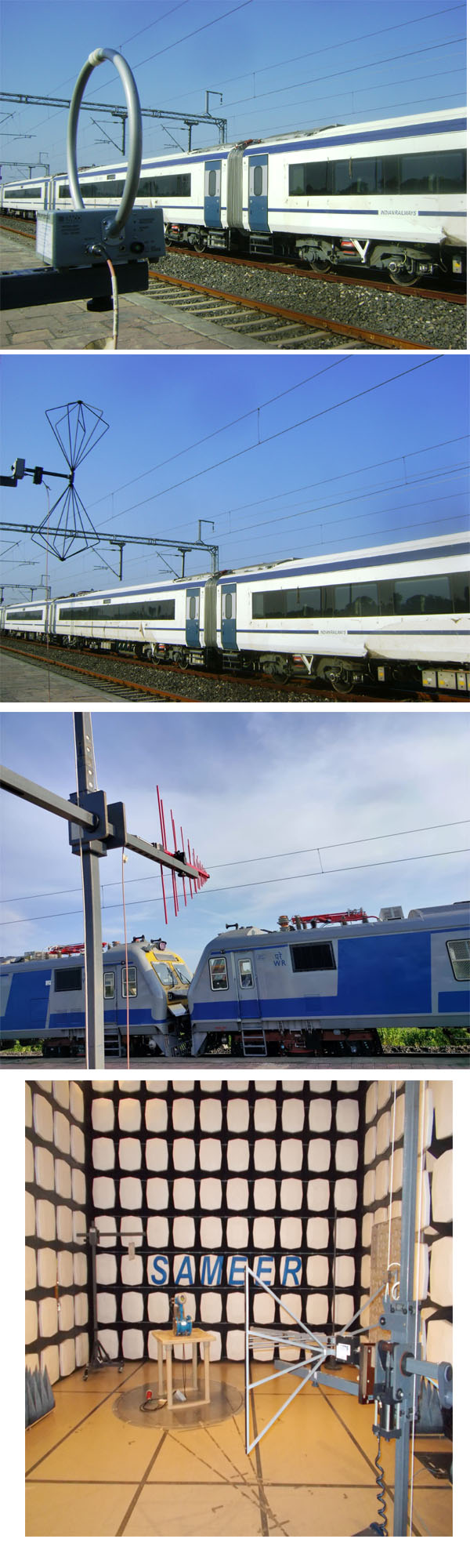

  • Radiated emission measurement of moving objects like Mono, Metro and mainline trains (railways). The group has rendered their services for radiated emission measurement of trains to various establishments like Mumbai Mono rail and suburban trains as per EN & IEC standards (IEC 50121-3-1, IEC 50121-3-2, IEC 50121-2).
  • Organising short duration workshops for imparting training on EMI/EMC.
  • NABL Certificate for EMC Testing.pdf (.pdf file, 373KB)
EMI/EMC instrument calibration services as per relevant IEC/ANSI/IEEE standards
Electrical Safety & Environmental test services
  • Accredited Calibration services for EMC test instruments and accessories
  • LISNs / ISNs / CDNs / Attenuators / Capacitive Coupling Clamps / Directional Couplers
  • Surge / EFT / ESD Generators
  • Signal Generators / Amplifiers / EMI Receiver
  • Cal Lab NABL Certificate.pdf (.pdf file, 305KB)
TEST FACILITIES AVAILABLE1
Emission Tests
Civilian Standard (CISPR/IEC/FCC) Military standard (MIL-STD-461)
Conducted Emission as per FCC Part 15 & CISPR 11/14/15/22/32 Conducted emission as per CE 101
Radiated Emission Testing as per CISPR 11/22/32 Conducted emission as per CE 102
Harmonics Emission as per IEC/EN 61000-3-2 Radiated emission as per RE 101
Flicker emission as per IEC/EN 61000-3-3 Radiated emission as per RE 102
Susceptibility / Immunity Tests
Civilian Standard (IEC 61000-4-X) Military standard (MIL-STD-461)
Electro Static Discharge test as per IEC 61000-4-2 Conducted susceptibility as per CS 101
Radiated Susceptibility Testing as per IEC/EN 61000-4-3 Conducted susceptibility as per CS 109
Electric Fast Transient test as per IEC/EN 61000-4-4 Conducted susceptibility as per CS 114
Surge test as per IEC/EN 61000-4-5 Conducted susceptibility as per CS 115
RF conducted susceptibility test as per IEC/EN 61000-4-6 Conducted susceptibility as per CS 116
Power Frequency Magnetic Field test as per IEC/EN 61000-4-8 Radiated susceptibility as per RS 101
Voltage dips and interruptions as per IEC/EN 61000-4-11 Radiated susceptibility as per RS 103
Ring & damped Oscillatory wave test as per IEC/EN 61000-4-12
Dips on DC Voltage supply as per IEC/EN 61000-4-29
2. Calibration of EMI/EMC test instruments and accessories
i.RF Parameters (coupling / Decoupling, correction factors)
  • Insertion Loss (Correction factor for LISNs & ISNs)
  • Attenuation
  • Impedance
  • Isolation
  • Coupling factor (for CDNs, Directional couplers)
  • VSWR / Reflection co-efficient
  • Frequency (150 kHz 3 GHz)
  • RF field / power level
  • Harmonic level (upto 3rd harmonic)
  • Amplifier gain
ii. DC / Pulse parameters (for Impulse Generator - ESD, EFT & Surge)
  • Rise time, Fall time, Pulse width
  • High Voltage Pulse level (Common & differential mode)
3.Safety test facility
i.Electrical Safety Tests
  • General Safety requirement for IT equipment (IEC 60950 / IS 13252)
  • General Safety requirement for Audio/Video equipment (IEC 60065 / IS 616)
  • General Safety requirement for Household equipment- Microwave Oven (IEC 60335-2-25 / IS 302-2-25)
ii.Environmental tests
  • IEC 60068-2-1 / IS 9000 Part 2 (Cold test)
  • IEC 60068-2-2 / IS 9000 Part 3 (Dry heat test)
  • IEC 60068-2-14 (Temperature cycling)
  • IEC 60068-2-30 / IS 9000 Part 5 (Damp heat - cyclic)
  • IEC 60068-2-78 / IS 9000 Part 4 (Damp heat- steady state)
  • IEC 60068-2-6 (Vibration Test-Sinusoidal)
  • IEC 60068-2-64 (Vibration Test-Random)
  • IEC 60068-2-27 (Vibration Test-Shock)
  • JSS 55555, MIL-STD-810
iii.Insulating Material test
  • IEC 60695-10 2 (Abnormal Heat / Ball pressure test)
  • IEC 60695-2 10, IEC 60695-2 11, IEC 60695-2012, IEC 60695-2013 (Glow wire test)
  • ASTM D1525/D648 / IS13360 (Part 6/sec 1) (VSP / HDT Determination test or Vicat test)
CONTACT DETAILS

EMC Centre-SAMEER, Sector-7, Rain Tree Marg, CBD Belapur, Navi Mumbai - 400 614. India

Telephone
  • Customer Care Cell - (+91)- 022 - 2759 3121, 2756 4056
  • EMI/C testing Services - (+91)- 022 27593116/17/18
  • EMI/C Instrument Calibration Services (+91) 022 27593118, 27593126
  • Electronic Safety & Environmental testing Services - (+91)- 022 - 27593132
FAX

(+91)-022 - 2756 4062 (Navi Mumbai Centre), 2572 3254 (Powai campus)

Email:emcdivision[at]sameer[dot]gov[dot]in

Website:www.sameer.gov.in
